This is a 'Pre-Release' of Uphole2.
That means it is not completely finished and I still have work to do on it. But right now I have other things to occupy me - like looking for work.
Check Back in a few months for updates.
**Note that GDIPlus is required. This should be present on any reasonably uptodate system (Windows 2000 or later).
If you receive an error like this :
Error initializing GDI+
Then you will need to obtain and install GDIPlus from the Microsoft Website.
That means it is not completely finished and I still have work to do on it. But right now I have other things to occupy me - like looking for work.
Check Back in a few months for updates.
**Note that GDIPlus is required. This should be present on any reasonably uptodate system (Windows 2000 or later).
If you receive an error like this :
Error initializing GDI+
Then you will need to obtain and install GDIPlus from the Microsoft Website.
With Uphole2 you can display SEG2 and OYO160 files, pick breaks, plot uphole times, calculate interface depths and velocities. It also optionally writes SEGY files.

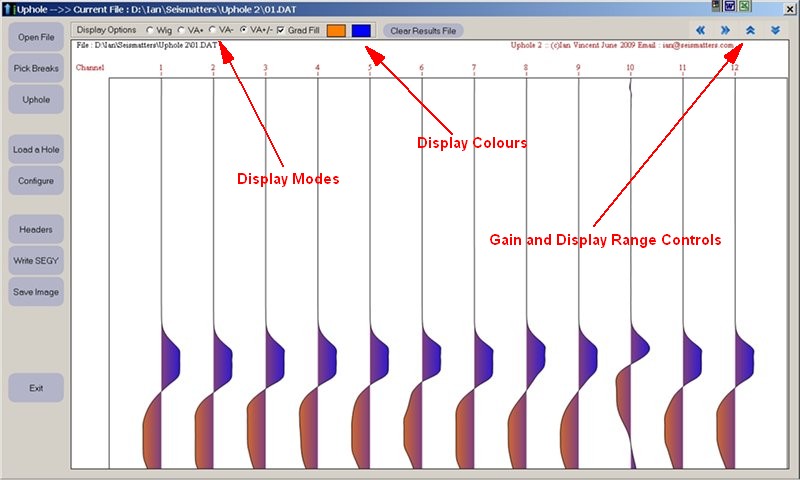

Various Display Options

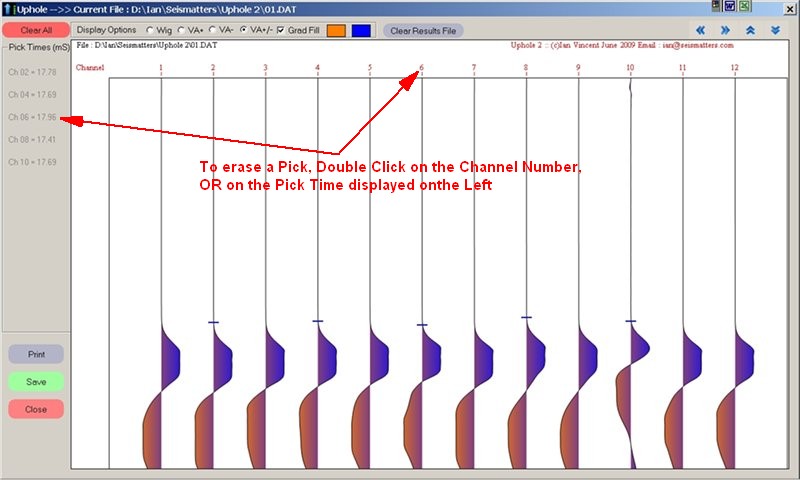

Picking Breaks. The time and Channels are displayed as you pick. To Remove a Pick, simply Double Click on the Channel Number at the top, or on the Displayed Pick time.
Display Header Information

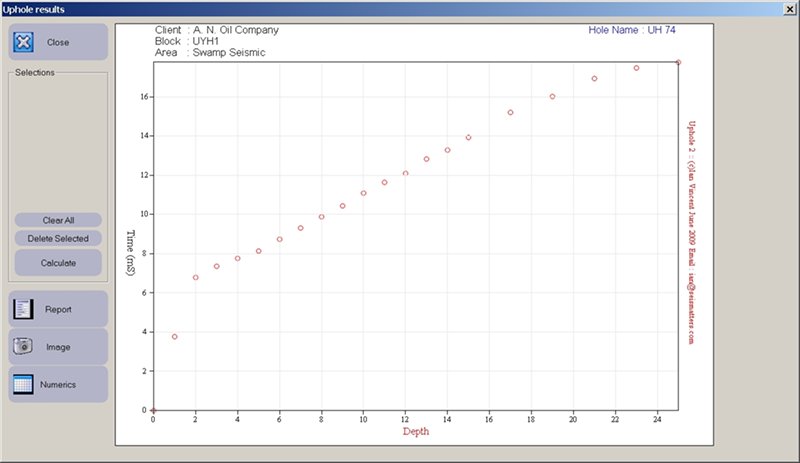

Plot the Picks You have Made

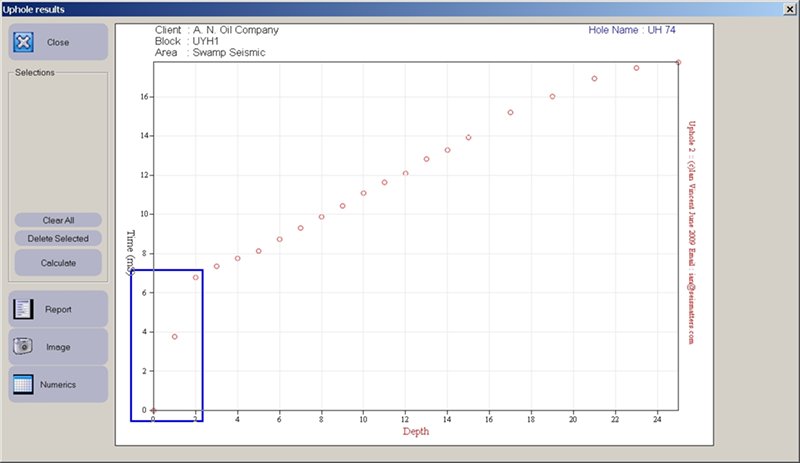

Click and Drag to Select a Range of Points

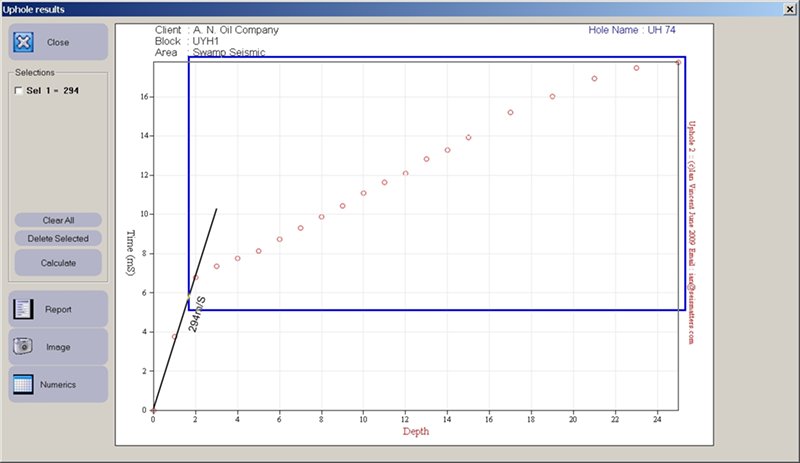

Select some More

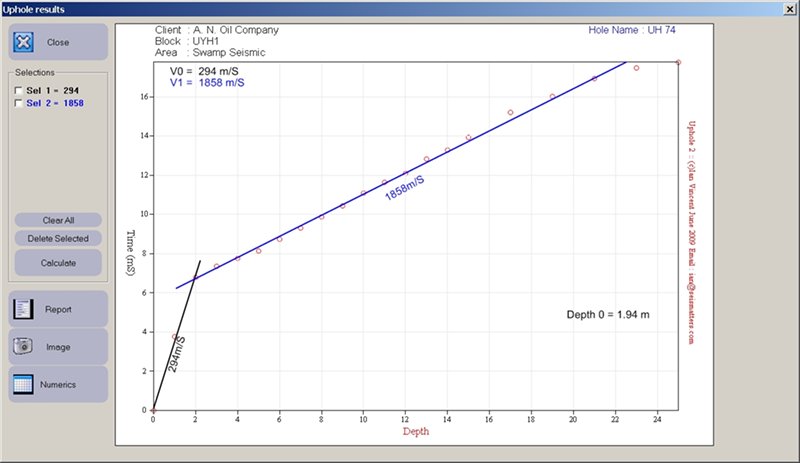

Click Calculate to Tidy up and Calculate Depths

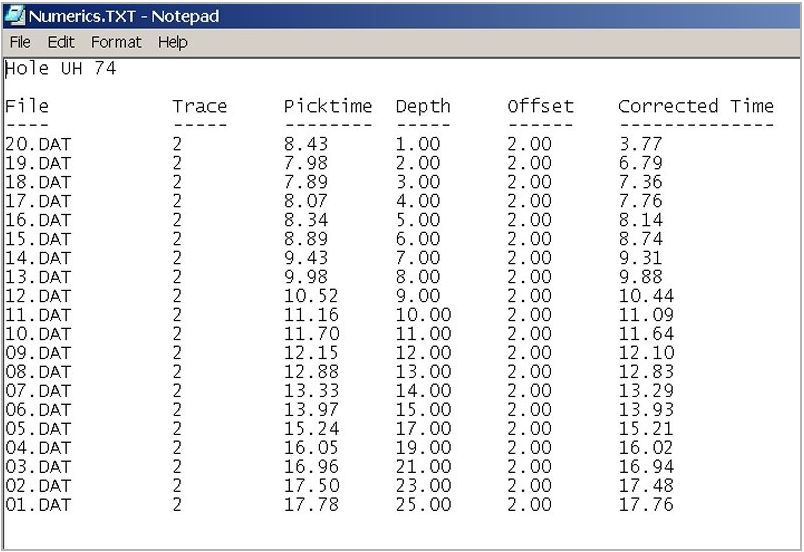

Display the Numeric Results

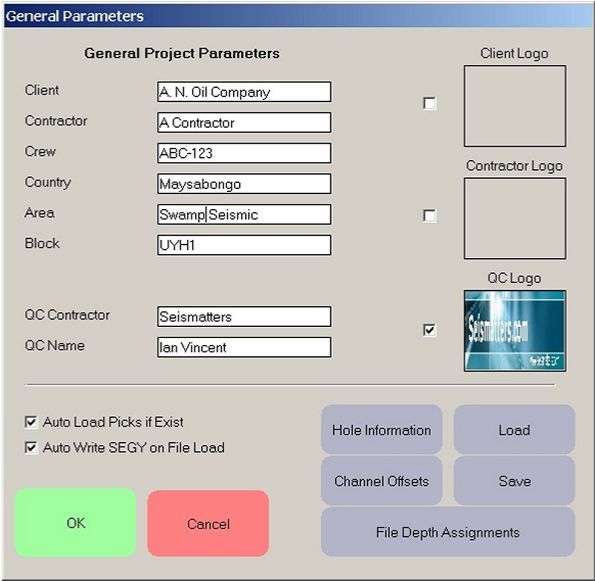

Set Options
Define Downhole Geometry
Optionally Assign Depth and Offset to Files
Obsolete. No longer Available. See SMUH3
